EasyPIC Fusion v7 (Go to Parent Category)

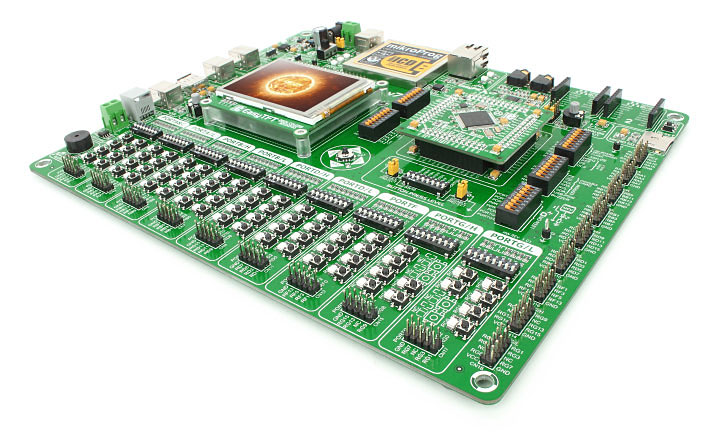

EasyPIC Fusion v7 The EasyPIC Fusion v7 combines support for three different architectures - dsPIC33, PIC24 and PIC32 - in a single development board. It contains many on-board modules; including multimedia, Ethernet, USB, CAN and more. The on-board mikroProg programmer and debugger supports over 65 devices. An EasyTFT board is included with the system.
R5,450  Qty:
Price ex. VAT. Weight: 1,300g. Stock: Lead-time applicable [i]. mikroE Icon
Board
Note: MCU cards sold separately.

Features
MagnifyerExplore Features Interactively
  • On-board USB programmer (no need to purchase an external programmer) with mikroICD for in-circuit-debugging from any of MikroElektronika's compilers. Free 2K limited demo compiler included.
  • MikroElektronika-standard IDC10 connectors, as well as two "mikroBus" connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items").
  • Example programs.
  • USB or external switching AC/DC (9-32V DC or 7-23V AC) power supply option. Supports both 3.3V and 5V microcontrollers.
  • LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed).
  • Pull-up / pull-down option on all port pins.
  • Replaceable crystal oscillator.
  • ICD (in-circuit debugging) connector for use with Microchip ICD products.
  • Reset button.
  • Supports PIC24, dsPIC33 and PIC32MX series microcontrollers in 100-pin TQFP packages.
  • Includes the EasyTFT board which features a 320X240 TFT colour display with touch-screen. A Graphic LCD can alternatively be connected to the board instead of the EasyTFT board (a contrast adjustment potentiometer for the GLCD is available on-board).
  • DS1820 and LM35 temperature-sensor connectors (DS1820/LM35 sold separately).
  • Directional navigation button.
  • Potentiometer for ADC (Analog-to-Digital Converter) input.
  • USB, USB host and two USB with serial UART connectors. On-board MCP2551 CAN controller with screw-terminal connector. Ethernet connector.
  • Serial 24AA01 EEPROM with 1kbit of memory and I2C interface and serial M25P80 Flash with 8Mbit of memory and SPI interface, and microSD socket.
  • 2 x 3.5mm jacks (headphone / microphone) and VS1053 stereo codec. Piezo buzzer.

Package
The package consists of:
Box
Protective Box
Board
Development Board
USB Cable
USB Cable
Manuals
Manuals
Software
Software
