GSM2 click (Go to Parent Category)

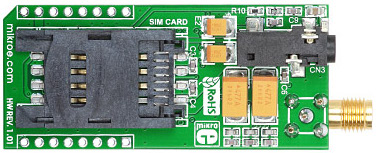

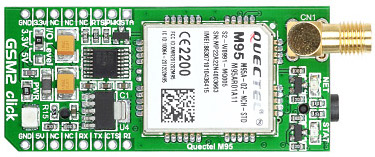

GSM2 click GSM2 Click is a perfect solution for adding a GSM/GPRS communication layer to your device. It features the Quectel M95 GSM/GPRS module which supports GSM850MHz, GSM900MHz, DCS1800MHz or PCS1900MHz quad-band frequencies with 85.6 kbps GPRS data transfer. The board is designed in the mikroBUS form factor and contains quadrupole audio/microphone jack, SMA antenna connector and a SIM card socket. GSM Click communicates with the target microcontroller via seven mikroBUS lines (RX, TX, INT, PWM, CS, RST and AN). The board uses a 5V power supply, but can communicate at either 3.3V or 5V voltage levels (selection by SMD jumper). An LED diode indicates the presence of power supply.
On SpecialOn SpecialOn Special R480  R690  Qty:
Price ex. VAT. Weight: 25g. Stock: 1 available immediately [i]. mikroE Icon
