EasyAVR7 (Go to Parent Category)

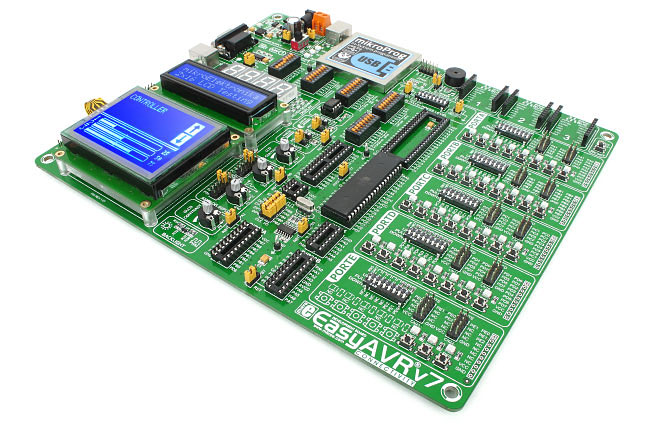

EasyAVR7 The EasyAVR7 is a development tool for DIP-package Atmel AVR microcontrollers. Some of it's features include LEDs, buttons and headers connected to each MCU pin, an on-board USB 2.0 programmer, 3 mikroBus sockets for easily connecting "click" accessory boards, RS-232, USB-UART and LCD, GLCD and 7 segment displays.
R2,200  Qty:
Price ex. VAT. Weight: 1,300g. Stock: Lead-time applicable [i]. mikroE Icon
Note: LCDs sold separately.

MagnifyerExplore Features Interactively
  • On-board USB programmer (no need to purchase an external programmer). Free 2K limited demo compiler included.
  • MikroElektronika-standard IDC10 connectors, as well as three "mikroBus" connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items").
  • Example programs.
  • USB or external switching AC/DC (9-32V DC or 7-23V AC) power supply option. Supports both 3.3V and 5V microcontrollers.
  • LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed).
  • Pull-up / pull-down option on all port pins.
  • Contrast adjustment on LCD and GLCD displays via potentiometers, and backlight brightness controllable via PWM (pulse-width-modulation).
  • Replaceable crystal oscillator.
  • JTAG connector available for use with external programmer / debugger.
  • Reset button.
  • Supports Atmel AVR AT90, ATtiny and ATmega series microcontrollers in 8-, 14-, 20-, 28- and 40-pin DIP packages.
  • Comes with a ATmega32 microcontroller.
  • Has place for a 2x16 LCD display and a 128x64 KS0108-type GLCD display with touch-panel (sold separately). Comes with 4 x 7-segment displays.
  • DS1820 and LM35 temperature-sensor connectors (DS1820/LM35 sold separately).
  • Two potentiometers for ADC (Analog-to-Digital Converter) inputs.
  • RS232 (with MAX232) and USB with serial UART connectors.
  • Serial 24AA01 EEPROM with 1kbit of memory and I2C interface.
  • Piezo buzzer.

The package consists of:
Protective Box
Development Board
USB Cable
USB Cable

Supported Microcontrollers
