PICPLC16 v6 (Go to Parent Category)

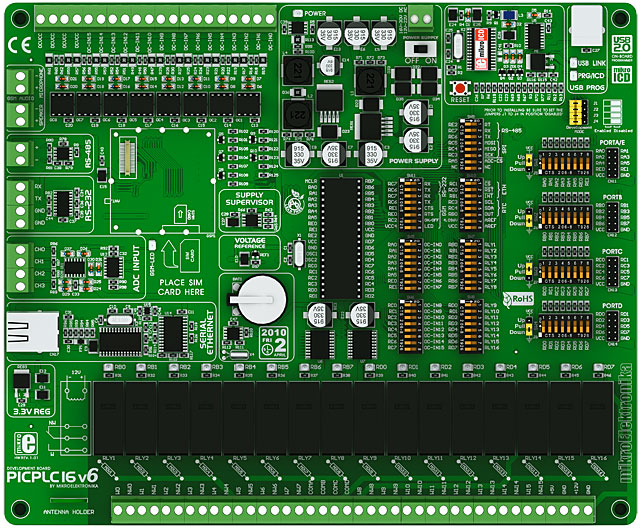

PICPLC16 v6 The PICPLC16 v6 is a PLC system used to develop industrial, home and office control devices. The system features GSM/GPRS communication, 16 relays, 16 optocoupled inputs, RS485, RS232, serial Ethernet, etc.
GSM/GPRS module/antenna purchased separately.
R2,300  Qty:
Price ex. VAT. Weight: 1,450g. Stock: Lead-time applicable [i]. mikroE Icon

Arrow 16 relay outputs (driven by ULN2804 high-current darlington arrays), and 16 optocoupled inputs (HP2630 with Schmitt trigger).
Arrow DIP40 socket with PIC18F4520.
Arrow Built-in USB programmer with mikroICD in-circuit-debugging (no external programmer necessary).
Arrow Pull-up / pull-down option on all port pins.
Arrow GSM/GPRS communication with GPS (GSM/GPRS/GPS module and antennas purchased separately).
Arrow Ethernet (ENC28J60), and RS-232 / RS-485 communication via screw-terminal connectors.
Arrow Real-time clock.
Arrow Screw-terminal speaker and microphone connectors.
Arrow Precise analogue input measurement via MCP3204 analogue-to-digital converter, with the option of either a VCC or on-board 4.096V reference.
Arrow MikroElektronika-standard IDC10 connectors for easily connecting any of a large range of add-on boards.
