AVRPLC16 v6 (Go to Parent Category)

AVRPLC16 v6 The AVRPLC16 v6 is an AVR-based PLC system used to develop industrial, home or office control devices. The system features GSM(GPRS), GPS communication, 16 relays, 8 optocoupled inputs, RS485, RS232, Ethernet, MMC/SD and many more.
GSM/GPRS module/antenna and SD card purchased separately.
R4,350  Qty:
Price ex. VAT. Weight: 1,350g. Stock: Lead-time applicable [i]. mikroE Icon

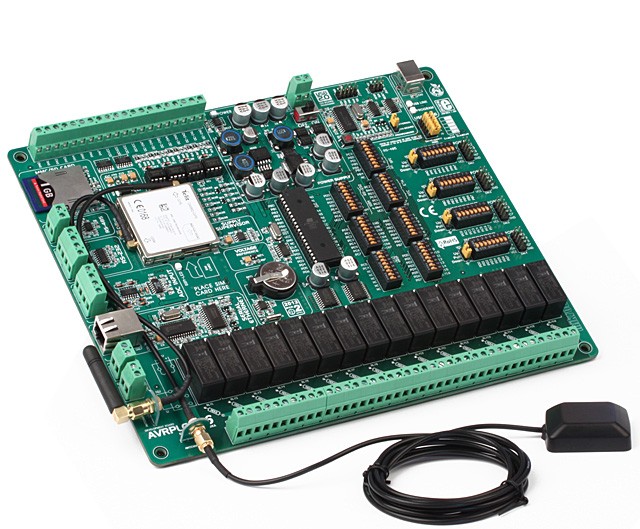

Board
Note: GSM/GPRS/GPS module, antennas and SD card are purchased separately.

Features
Arrow 16 relay outputs (driven by ULN2804 high-current darlington arrays), and 8 optocoupled inputs (HP2630 with Schmitt trigger).
Arrow DIP40 socket with ATMEGA32.
Arrow Built-in USB programmer (no external programmer necessary).
Arrow Pull-up / pull-down option on all port pins.
Arrow GSM/GPRS communication with GPS (GSM/GPRS/GPS module and antennas purchased separately).
Arrow Ethernet (ENC28J60), and RS-232 / RS-485 communication via screw-terminal connectors.
Arrow Real-time clock.
Arrow Screw-terminal speaker and microphone connectors.
Arrow Precise analogue input measurement via MCP3204 analogue-to-digital converter, with the option of either a VCC or on-board 4.096V reference.
Arrow MikroElektronika-standard IDC10 connectors for easily connecting any of a large range of add-on boards.
Arrow MMC/SD card slot

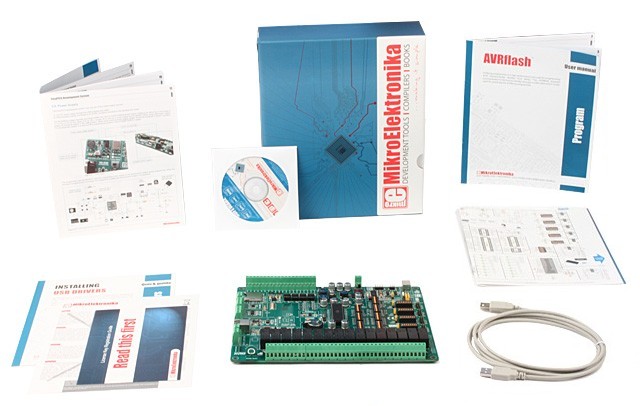

Package
Package
