Mini-M4 for Tiva C Series (Go to Parent Category)

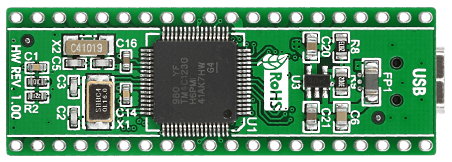

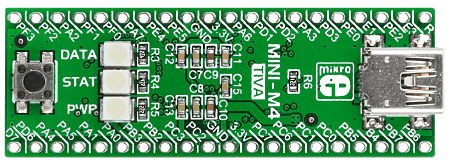

Mini-M4 for Tiva C Series MINI-M4 for Tiva C Series is a small ARM Cortex-M4 development board containing Tiva C Series TM4C123GH6PM microcontroller. It perfectly fits into a standard DIP40 socket. The board is equipped with a 16MHz SMD crystal oscillator, and a 32.768KHz crystal which can be used for the internal hibernation module. It has a reset button and three signal LEDs. The board comes preprogrammed with a fast USB HID bootloader, so no external programmers are needed for development. It operates on a 3.3V power supply. An on-board voltage regulator allows the board to be powered directly from a USB cable.
R1,050  Qty:
Price ex. VAT. Est. Weight: 5g. Stock: Lead-time applicable [i]. mikroE Icon
