clicker 2 for FT90X (Go to Parent Category)

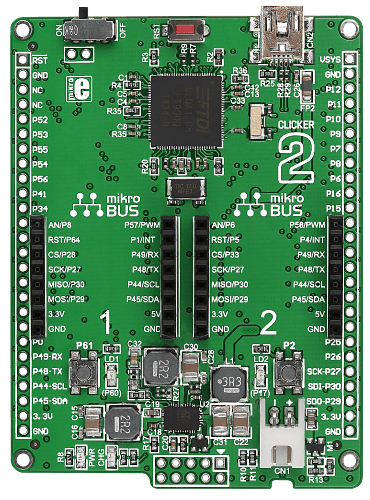

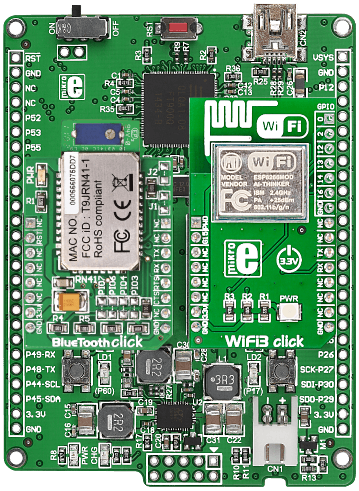

clicker 2 for FT90X clicker 2 is a battery-powered click board with two mikroBUS sockets on board allowing you to take advantage of the huge potential of click boards. This clicker 2 is powered by FT900, a 32-bit FT32 core MCU that operates at 100MHz, has 256kB of flash, 64kB on-chip data memory, and 256kB shadow program memory. The shadow program memory is where the code is executed from, enabling the MCU to work with zero wait states at 100MHz — making it faster than many MCUs with higher clock rates. The onboard LTC 3586-1 IC will provide 3.3V or 5V to the clicks. It turns the USB port into a battery charger. For convenience, clicker 2 for FT900 features a reset button and an ON/OFF switch (you can also connect an external ON/OFF switch). clicker 2 has the same pocket-size form factor and the same pair of 1x26 connection pads as mikromedia boards. This makes it compatible with mikromedia shields letting you expand your device any way you want.
R630  Qty:
Price ex. VAT. Est. Weight: 50g. Stock: Lead-time applicable [i]. mikroE Icon
