mikroMedia 7" for STM32F7 (Go to Parent Category)

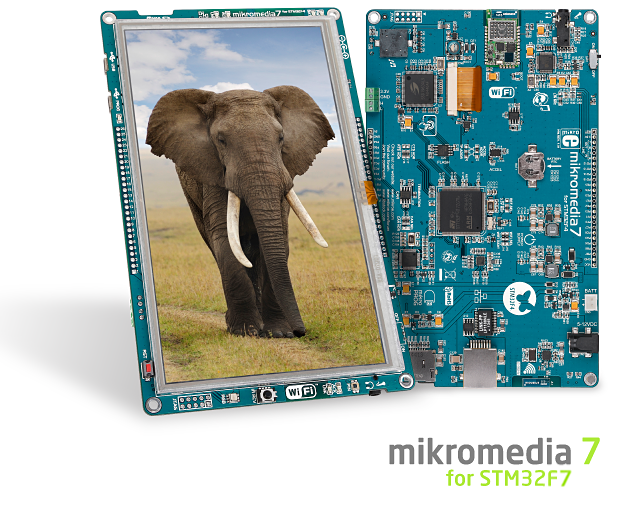

mikroMedia 7" for STM32F7 Mikromedia 7 for STM32F7 is a 7" display board powered by the proven STM32F746ZG with 216 MHz operation (462 DMIPS), 1 MB of Flash and 320 + 4 KB of SRAM. The board also features various modules such as an accelerometer, microSD card slot for external storage, MP3 Stereo Codec chip, WiFi module, CAN interface and ethernet connector.
R4,250  Qty:
Price ex. VAT. Weight: 700g. Stock: Lead-time applicable [i]. mikroE Icon


Features
MagnifyerExplore Features Interactively
  • 800x480 7" Touch-screen TFT display, with Solomon SSD1963 graphics controller.
  • 3.5mm headphone/microphone jack and stereo MPEG audio codec (VS1053).
  • MicroSD card slot.
  • USB, with USB On-The-Go.
  • Built-in on-board programmer/debugger. Also features a JTAG connector compatible with the MikroProg programmer.
  • Example programs.
  • STM32F746ZGT6 microcontroller.
  • ADXL345 accelerometer.
  • Additional 8MB serial flash memory.
  • Li-Po battery connector and MCP73832 controlled charging circuit (Li-Po battery sold seperately), as an alternative to powering the system via the USB cable or power connector (12V max input).
  • Nordic nRF24L01+ 2.4GHz RF transceiver with chip antenna.
  • Ethernet.
  • SPWF01SA WiFi Module
  • Piezo buzzer.
  • RGB LED.
  • Photosensor for measuring ambient light.
  • Infra-red receiver.
  • MCP9700A analogue temperature sensor (-40°C to 125°C).
  • Lithium-polymer real-time clock (RTC) backup battery.
  • Reset button.
  • On/off switch.

Package
The package consists of:
Box
Protective Box
MikroMedia Board
MikroMedia
USB Cable
USB Cable, Ethernet Cable
and two 2x16 Headers
microSD
Stylus, 2GB microSD Card
and four Spacers
