ADC potentiometer
You can simulate analog inputs using the provided analog potentiometer which can be connected to each of the 10 supported microcontroller analog input pins.
Audio Connectors
Audio connectors enable you to connect headphones and microphone with the audio codec chip and use it in your applications.
Button Press Level
Use these switches to pull-up or pull-down buttons in each input/output group.
CAN Support
Board contains MCP2551 CAN controller chip connected to screw terminal connector. This way you can implement industry-standard CAN communication with your device.
DS1820 Temp Sensor
Board supports Dallas DS1820 One-Wire digital temperature sensor. You can measure temperatures from -55C to +125C (-67F to +257F), with 0.5C accuracy.
Ethernet Connector
Microcontrollers with internal ethernet support can be connected to this RJ-45 connector to establish ethernet communication.
PORT Headers
A male IDC10 port header is available in each Input/Output group.
SMD LEDs
Each Input/Output PORT group contains red SMD LEDs with low current consumption of only 1mA. Board contains total of 67 LEDs for PORT pins.
Tri-state DIP switches
Tri-state DIP switches are used to enable 4K7 pull-up or pull-down resistor on ony desired PORT pin.
LM35 Temp Sensor
The LM35 is a low-cost precision integrated-circuit analog temperature sensor. It can measure temeperatures from -55C to +150C with 0.25C accuracy at room temperatures.
STM32F107VCT6 MCU
ARM® Cortex™-M3 with 72MHz operation; 0-wait states execution from 256Kbytes of Flash memory, 64kbytes of RAM, low power, rich peripherals, you name it!
microSD card slot
microSD Card slot allows you to store large ammounts of data externally on microSD card using fast SPI communication.
mikroBUS socket 1
EasyMx® PRO v7 for STM32® ARM® provides two mikroBUS™ sockets for mikroElektronika Click™ accessory Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroBUS socket 2
EasyMx® PRO v7 for STM32® ARM® provides two mikroBUS™ sockets for mikroElektronika Click™ accessory Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroProg
On-board mikroProg™ In-Circuit Debugger and programmer is supports over 180 STM32® ARM® Cortex-M3™ microcontrollers from STMicroelectronics®
Stereo MP3 codec
VS1053 MPEG audio codec with SPI interface is available for audio input and output. Codec supports many compression file formats.
Navigation switch
Navigation switch can be used for handling the on-screen menus or as a generic input device.
Oscilloscope GNDs
Three separate GND pins are available on the board for easier connection of GND reference for oscilloscope probes.
Piezo Buzzer
With piezo buzzer you can debug your applications, or have audio signalization feature. It can be connected to two digital output pins, one of which is the output of PWM module.
3.3V power Supply
Board is equipped with power supply unit capable of supporting 3.3V microcontrollers and peripherals. Board can be powered over USB cable, or external adapter connectors.
Programmer USB connector
Programmer USB connector is connected to on-board mikroProg™, but can also be used to power the board, when the J9 jumper in the Power Supply section is in the USB position
Reset Button
High quality reset button with surrounding reset circuitry ensures stable reset operation.
Right PORT Headers
Additional PORT headers are provided on the right side of the board.
I2C EEPROM
You can store 8x256 bytes of configuration data or other data into on-board 24AA01 Serial EEPROM with I2C interface.
Serial Flash
Store up to 8 Mbit of data in M25P80 Serial Flash Memory with 25 MHz SPI Bus Interface. It suports over 100,000 Erase/Program Cycles per Sector and has over 20 Year Data Retention.
EasyTFT Board
EasyTFT is delivered with the board. It contains 320x240 TFT Color Display with Touch Panel can display vivid and clear color images or advanced graphic content.
USB device connector
USB Device Connector is used for connecting the board with other devices such as PC using fast USB 2.0 communication.
USB host connector
USB Host Connector enables your device to behave as USB host. You can communicate with other USB slave devices, such as Flash Sticks, cameras, mp3 players and more.
USB-UART 1 Connector
Fast on-board FTDI chip with USB connector, allows you to communicate with a PC or other UART devices using USB-UART connection.
USB-UART 2 Connector
Fast on-board FTDI chip with USB connector, allows you to communicate with a PC or other UART devices using USB-UART connection.

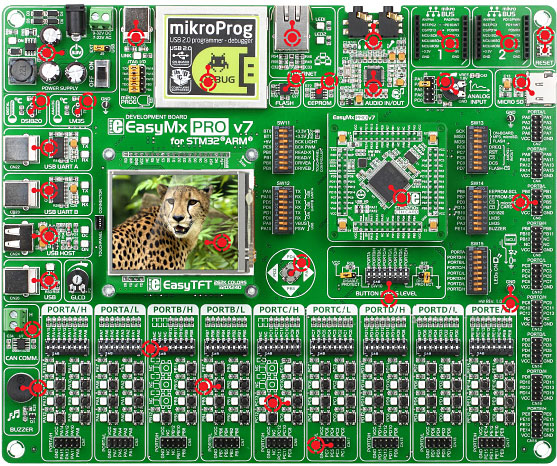

Up-Close
Hover your mouse over different parts of the board in order to view the details up-close.
